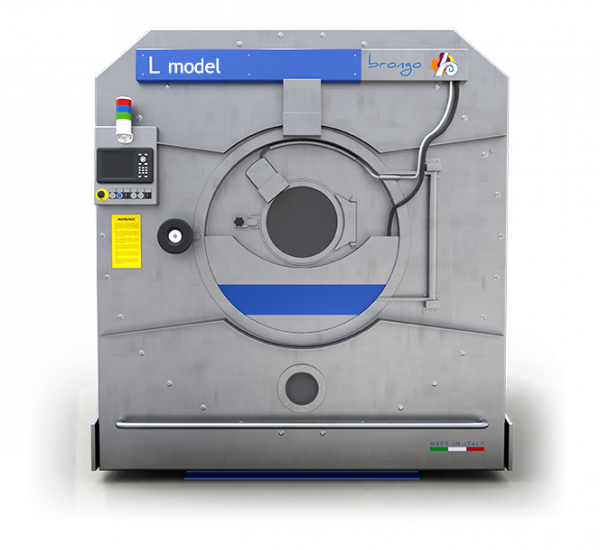

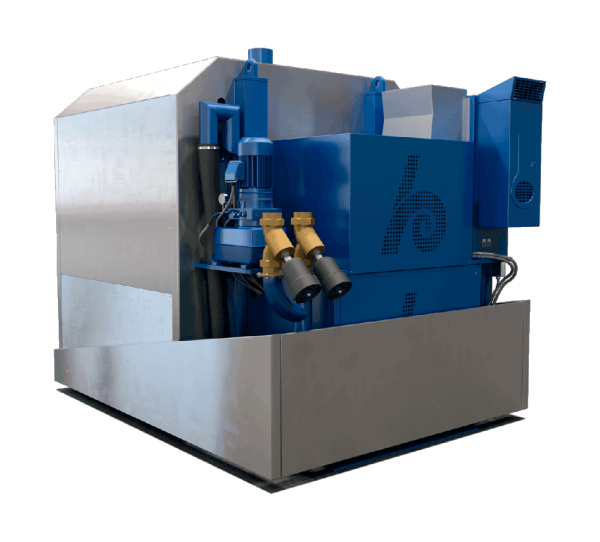

LM 60 – 120 Washing Machines with Open Pocket Drum – Medium Spinning Speed
Models: LM 60 – LM 120
Manufactured for all treatments on ready made garments such as stone wash (enzymens and stones) and dyeing
- Robust and easy machines for industrial use
- The machine consist of a robust outer structure
- All parts in direct contact with the bath are made in stainless steel AISI 304 and 316
- Inner drum manufactured in AISI 316
- Sampling porthole positioned on the door of the machine
- Transmission by means of alternate current motors controlled by inverter
- Variable working speed from 3 to 50
- Variable extraction speed
- Transmission by trapezoidal belts
- Water inlet controlled by liter counter
- Direct and indirect steam heating
- Automatic control of temperature
- N.1 tank for products introduction
- Colour kitchen for preparing and automatic inlet of colours, salt and auxiliary products
- Video terminal to control the working cycles and to store up to 90 working programs of 70 steps each
- Electrical panel containing all power and electrical components
- Automatic restart from same step in case of electrical brake
Technical Specifications
| TECHNICAL DATA | U.M. | LM60 | LM120 |
|---|---|---|---|
| Drum diameter | mm | 1000 | 1250 |
| Drum depth | mm | 800 | 900 |
| Drum volume | dm3 | 628 | 1104 |
| Beaters | N° | 3 | 3 |
| Installed power | Kw | 7.5 | 15 |
| Used power | Kw | 3 | 6 |
| Feeding | Volt/Hz | 400/50 | 400/50 |
| Working speed | rpm | 3 - 50 | 3 - 50 |
| Centrifughe speed | rpm | 450 | 400 |
| Water inlet | Inches | 1 | 1 1/2 |
| Steam inlet | Inches | 3/4 | 1 |
| Drain diameter | mm | 100 | 140 |
| MACHINE OVERALL DIMENSIONS | |||
| Width | mm | 1500 | 2100 |
| Depth | mm | 1700 | 2000 |
| Height | mm | 2000 | 2270 |
| Weight | Kg | 2045 | 3600 |
