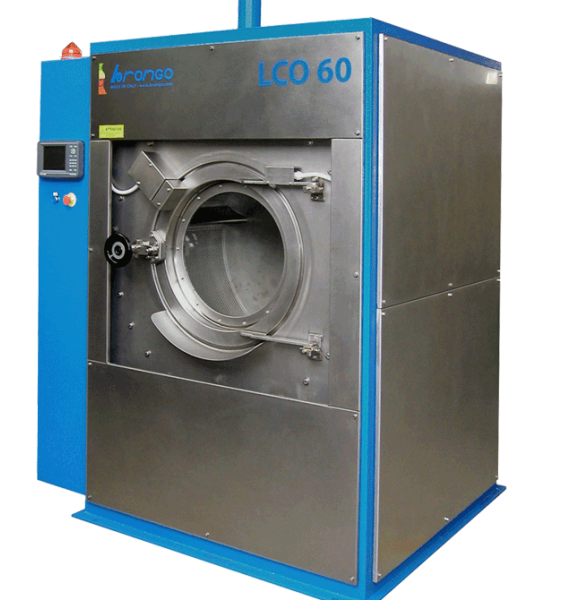

LCO 30 – 60 – 90 – 120 – 250 – 350 – 520 Washing Machines with Open Pocket Drum – High Spinning Speed
Models: LCO 30 – LCO 60 – LCO 90 – LCO 120 – LCO 250 – LCO 350 – LCO 520
Manufactured for all treatments on ready made garments such as: stone wash (enzymes and stones), rinsing and softening
- Robust and easy machines for industrial use
- The machine consists of a robust outer structure and a movable inner part suspended by shock absorbers and springs
- All parts in direct contact with the bath are made in stainless steel Aisi 304
- Inner drum manufactured in Aisi 316
- Sampling porthole, positioned on the door of the machine
- Transmission by means of alternate current motors controlled by inverter
- Variable washing speed from 5 to 50 rpm
- Variable spinning speed
- Transmission by trapezoidal belts
- New Automatic Self balancing system during extraction
- Water inlet controlled by litre counter
- Direct steam heating
- Automatic control of temperature
- N°1 tank for products introduction
- Forward tilting for easier garments unloading
- Video terminal to control working cycles and to store up to 90 working programs of 70 steps each
- Electrical panel containing all power and electrical components
- Automatic restart from same step in case of electrical brake
Technical Specifications
| TECHNICAL DATA | U.M. | LCO30 | LCO60 | LCO90 | LCO120 | LCO250 | LCO350 | LCO520 |
|---|---|---|---|---|---|---|---|---|
| Drum diameter | mm | 860 | 1070 | 1100 | 1250 | 1700 | 1800 | 1900 |
| Drum depth | mm | 525 | 660 | 950 | 1000 | 1100 | 1350 | 1950 |
| Drum volume | dm3 | 280 | 580 | 900 | 1200 | 2500 | 3500 | 5000 |
| Installed power | Kw | 5,5 | 7,5 | 15 | 22 | 45 | 75 | 110 |
| Used power | Kw | 2,2 | 3 | 7 | 8,8 | 22 | 30 | 44 |
| Feeding | Volt/Hz | 400/50 | 400/50 | 400/50 | 400/50 | 400/50 | 400/50 | 400/50 |
| Working speed | rpm | 5 - 50 | 5 - 50 | 5 - 50 | 5 - 50 | 5 - 50 | 5 - 50 | 5 - 50 |
| Centrifughe speed | rpm | 800 | 750 | 700 | 750 | 630 | 530 | 500 |
| Water inlet | Inches | 1 | 1 | 1 1/4 | 1 1/2 | 2 | 2 | 2 1/2 |
| Steam inlet | Inches | 3/4 | 3/4 | 3/4 | 1 | 1 | 1 1/4 | 1 1/4 |
| Drain diameter | mm | 100 | 100 | 100 | 150 | 180 | 180 | 180 |
| MACHINE OVERALL DIMENSIONS | ||||||||
| Width | mm | 1700 | 1800 | 2200 | 2300 | 2750 | 3100 | 3200 |
| Depth | mm | 1400 | 1650 | 2100 | 2300 | 2800 | 3000 | 3600 |
| Height | mm | 2000 | 2300 | 2400 | 2400 | 2700 | 3100 | 3200 |
| Weight | Kg | 1750 | 2600 | 4450 | 4850 | 8150 | 11500 | 12500 |
